Product Details:
|
| Usage: | Notching In Carbide Roller | Material: | PCD From E6 |
|---|---|---|---|
| Highlight: | pcd tipped inserts,polycrystalline diamond inserts |
||

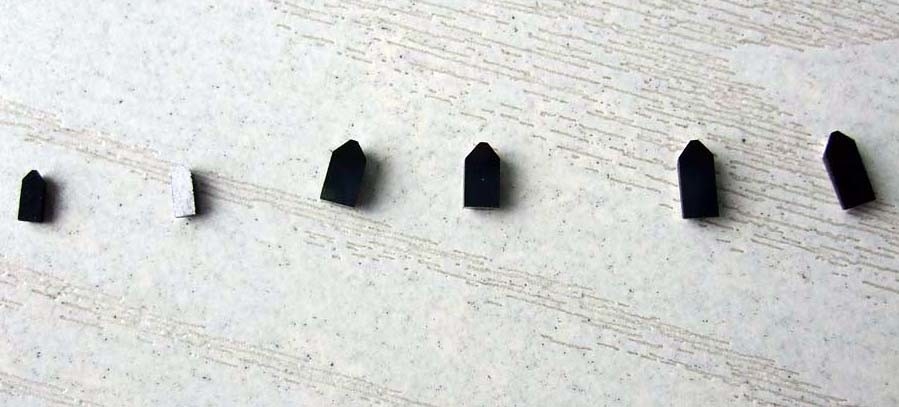

PCD Notchting tips
Specifications of PCD Notching inserts:
| Designation | D (mm) | L (mm) | B (mm) | H (mm) | S (mm) |
| N12-PCD | 4.00 | 8.00 | 1.20 | 2.50 | 1.30 |
| N14-PCD | 4.50 | 9.20 | 1.40 | 3.00 | 1.80 |
| N16-PCD | 5.00 | 10.40 | 1.60 | 3.20 | 2.00 |
| N18-PCD | 5.00 | 11.50 | 1.80 | 3.50 | 2.30 |
| N20-PCD | 5.50 | 13.50 | 2.00 | 3.70 | 2.50 |
- Non-standard tools will be made exactly according to the drawing.
- The Tolerance is kept very strictly.
