Product Details:
|
| Name: | PCD Milling Cutter | Feature: | Good Chip Remove Performance |
|---|---|---|---|
| Diameter: | 6mm, 10mm | Material: | PCD |
| Suitable For: | Cast Iron, Aluminum Alloy | Application: | External Internal Milling |
| Highlight: | pcd diamond end mills,milling machine cutters |
||

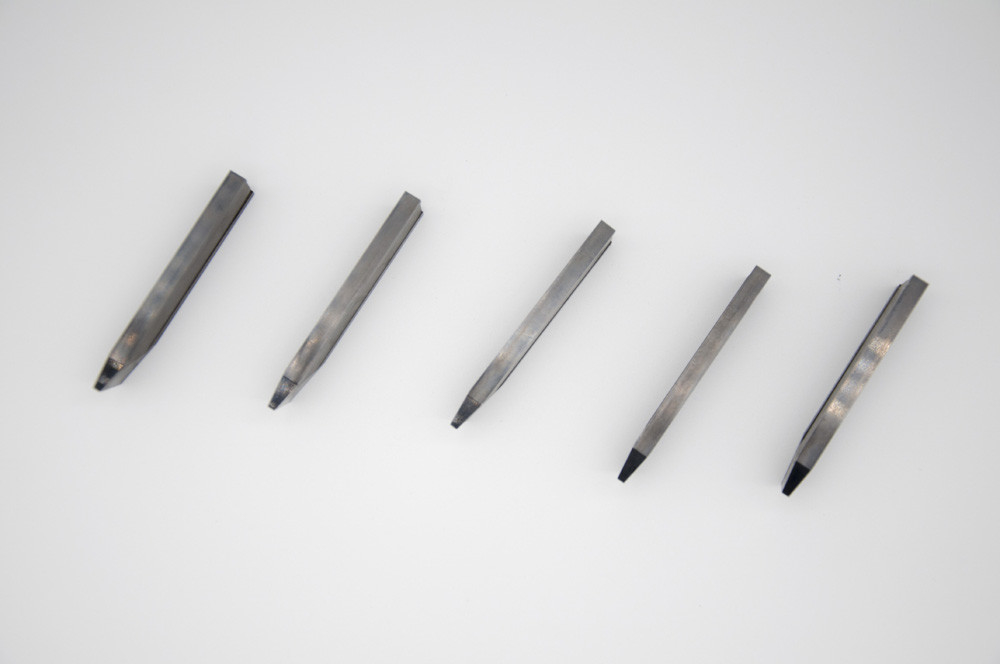

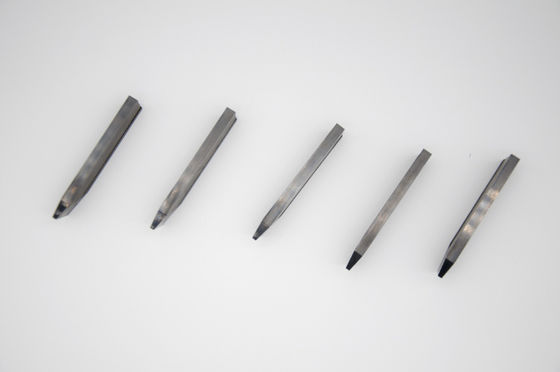

External Internal PCD Milling Cutter Good Chip Remove Performance
PCD Milling Cutter Advantages:
1. Sharp, very high precision;
2. High hardness, good wear resistance;
3. Good chip-remove performance: Smooth Finished Surface, no mark and damage to the cutting edge;
4. Stable quality, the first choice of all kinds of stone cnc router machines;
PCD Milling Cutter Parameters
| Product name | External Internal PCD Milling Cutter Good Chip Remove Performance |
| Application Apparatus | CNC equipment |
| Feature | Good Chip Remove Performance |
| Diamond Size | 0.25mm to 8mm |
| Shank Material | Carbide/stainless steel |
| Shank Thickness | 6mm |
| Rotate speed | 10000~30000r/min |
| Feed velocity | 1500~5000mm/min |
|
Machinable materials |
gold,silver,copper,aluminum,acrylic and other Non-ferrous metal material |
Technical Specifications
| Dimension (mm) | |||
| ΦD | L | L1 | Er |
| 4 | 100 | 55 | 120 |
| 6 | 100 | 55 | 120 |
| 8 | 100 | 55 | 120 |
| 10 | 100 | 55 | 120 |
| 12 | 120 | 55 | 120 |
| 14 | 150 | 55 | 120 |
Material
The tool bit of the PCD milling tools uses PCD blanks manufactured by world famous companies, The body part uses high quality tungsten carbide and tool steel.
| Welcome and congratulations!You found us a professional factory! | |
| Size & Design | 1.We not only supply all kinds of high quality solid carbide End Mills ,but |
| also different types of Drill Bits,Reamers,Tool Holders,Cutter Heads,Saw | |
| Blades and Inserts. | |
| 2. We have 0.02mm-25mm different diameter and 38mm-150mm length | |
| Milling Cutters for your winner market.HRC45/55/60/65 ,1-6 flutes for you | |
| to choose. | |
| 3.OEM:Special Cutters Customized acceptable!Coated OEM also.We can | |
| produceaccording to your drawing,too.Or the hot deisgned recommend | |
| to you. | |
| 4. HS Code reference for you to control everything:8207709000. | |
| 5. Mixed size and types in one batch available. | |
| 6. For distributor,we can label your brands on cutters and plastic box. | |
