PCD insert, VCGW 160404, VCGW 160408

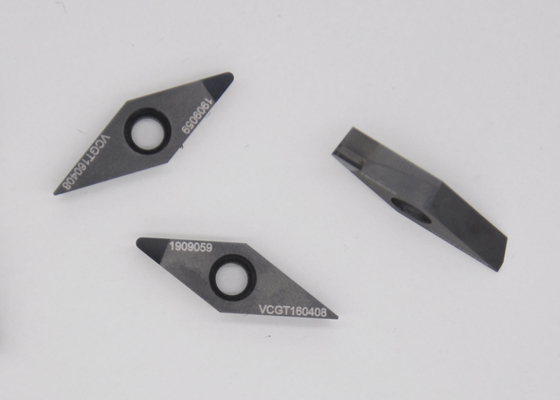

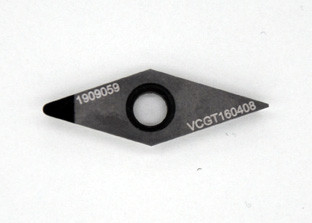

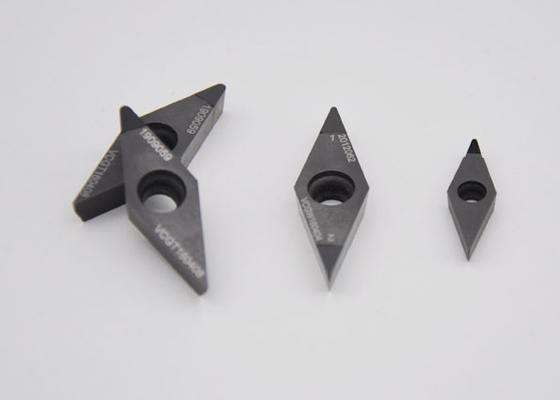

Large Image : PCD insert, VCGW 160404, VCGW 160408

Product Details:

Place of Origin:	CHINA
Brand Name:	New Asia Rich
Certification:	CE, ISO
Model Number:	VCGW 160404, VCGT 160408

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	plastic box, paper box
Delivery Time:	14 days
Payment Terms:	T/T
Supply Ability:	500 pcs per week

Contact Now

PCD insert, VCGW 160404, VCGW 160408

Description

Material:

Element Six

Grade:

D002, D010, D025, CTM302

Usage:

Turning

Application:

Non-Ferrous Materials

Highlight:

polycrystalline diamond tools

diamond tipped turning inserts

PCD Turning inserts

PCD insert, VCGW 160404, VCGW 160408 0

Designation	Dimensions
Designation	IC	S	D1	R
VCGW 110301	6.35	3.18	2.8	0.1
VCGW 110302	6.35	3.18	2.8	0.2
VCGW 110304	6.35	3.18	2.8	0.4
VCGW 110308	6.35	3.18	2.8	0.8
VCGW 160408	9.525	4.76	4.4	0.8
VCMW 160412	9.525	4.76	4.4	1.2
