Product Details:
|
| Name: | CBN Grooving Tool | Diameter: | As Drawing |
|---|---|---|---|
| Material: | CBN | Application: | Boring |
| Highlight: | OEM CBN Boring Tool,Hardened Steel CBN Boring Tool,Cast Iron CBN Boring Tool |
||

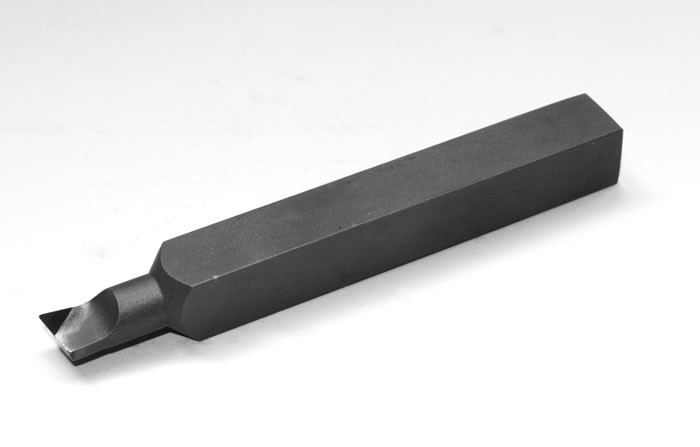

CBN Boring tools
CBN Boring tool is used to bore and precisely process different materials, such as hardened steel, hard cast iron, grey cast iron, and iron series metal.
Specifications:
| Kr° | W1 | H1 | H | W/D | L | d | L1 | Er° | R |
| 95 | 6 | 10 | 20 | 20 | 120 | 10 | 30 | 70 | 0.4 |
| 95 | 6 | 12.5 | 25 | 25 | 120 | 10 | 30 | 80 | 0.4 |
| 95 | 9.5 | 10 | 20 | D20 | 120 | 16 | 30 | 70 | 0.4 |
| 95 | 9.5 | 10 | 20 | D20 | 120 | 16 | 30 | 90 | 0.4 |
