Product Details:
|
| Name: | CBN Turning Inserts Tools | Material: | Cubic Boron Nitride |
|---|---|---|---|
| Usage: | For Cast Iron, Hardened Steel | Grade: | TCGW 110304 TCMW 110308 |
| Edge: | S01020, S02020, Etc. | ||
| Highlight: | CBN TCGW 090202,CBN TCGW 090204,CBN Turning Inserts For Cast Iron |
||

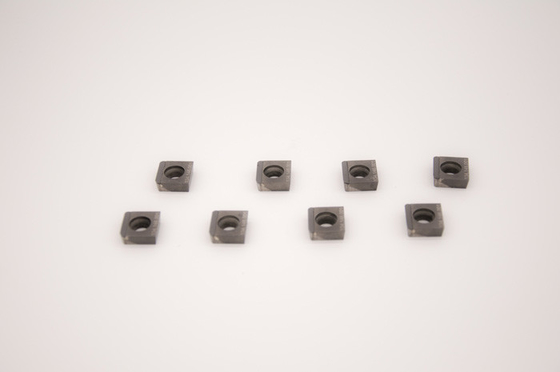

TCGW 090202 TCMW 090204 CBN Turning Inserts For Cast Iron
| Designation | IC | S | D1 | R |
| TCGW 090202 | 5.56 | 2.38 | 2.5 | 0.2 |
| TCMW 090204 | 5.56 | 2.38 | 2.5 | 0.4 |
| TCGW 110304 | 6.35 | 3.18 | 2.9 | 0.4 |
| TCMW 110308 | 6.35 | 3.18 | 2.9 | 0.8 |
| TCGW 160408 | 9.525 | 4.76 | 4.4 | 0.8 |
| TCMW 160412 | 9.525 | 4.76 | 4.4 | 1.2 |
