Product Details:
|
| Name: | PCD End Mills | Usage: | Milling Non-Ferrous Material |
|---|---|---|---|
| Material: | PCD From Element Six | ||
| Highlight: | diamond tipped lathe tools,pcd grooving tools |
||

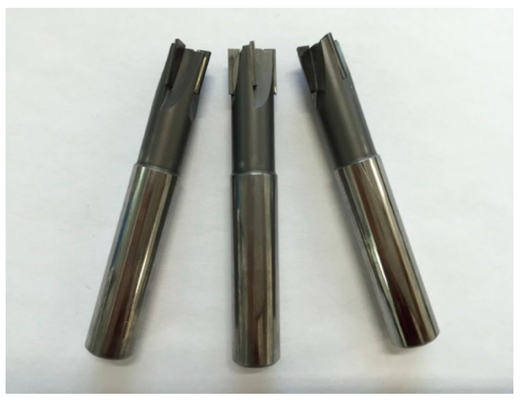

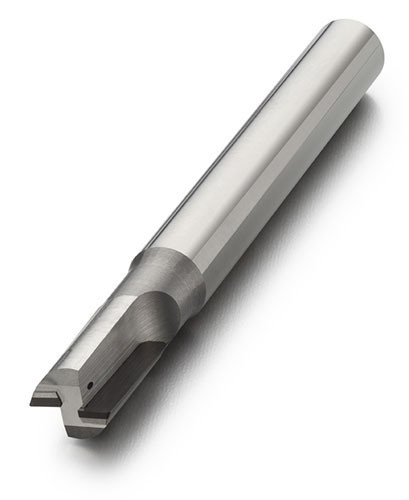

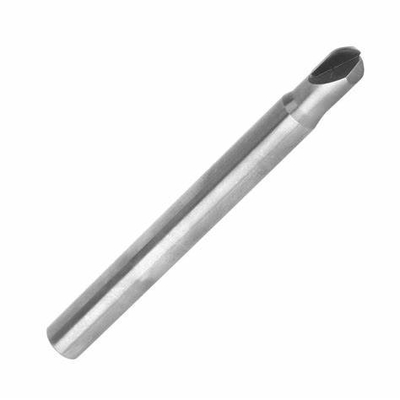

PCD End Mills
| d1 | l3 | d2 | l2 | l1 | Teeth No. |
| 3 | 5 | 4 | 40 | 60 | 1 |
| 4 | 6 | 4 | 40 | 60 | 1 |
| 5 | 7 | 6 | 40 | 60 | 1 |
| 6 | 8 | 6 | 40 | 60 | 1 |
| 8 | 10 | 8 | 40 | 72 | 1 |
| 10 | 12 | 10 | 40 | 72 | 1 |
| d1 | l3 | d2 | l2 | l1 | Teeth No. |
| 6 | 5 | 6 | 40 | 60 | 2 |
| 8 | 5 | 8 | 40 | 72 | 2 |
| 10 | 6 | 10 | 40 | 72 | 2 |
| 12 | 8 | 12 | 50 | 97 | 2 |
| 14 | 9 | 14 | 50 | 97 | 2 |
| 16 | 10 | 16 | 50 | 97 | 2 |
| 18 | 11 | 18 | 50 | 97 | 2 |
| 20 | 12 | 20 | 50 | 97 | 2 |
