Product Details:
|
| Name: | CBN Cutting Tools | Material: | Cubic Boron Nitride Material |
|---|---|---|---|
| Usage: | External Turning Tool | Hardness: | HRC40-60 |
| Coating: | CBN | Advantage: | High Production Capacity |
| Highlight: | cnc machine cutting tools,precision cutting tools |
||

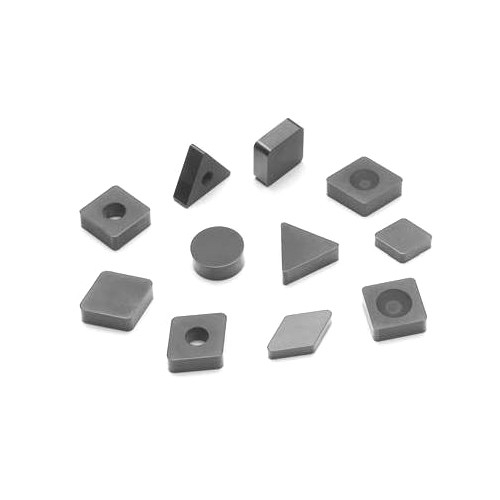

High Production Capacity CBN Cutting Tools Cubic Boron Nitride Material
CBN Cutting Tools Introduction and application:
Our CBN Cutting Tools are designed and manufactured to provide significantly longer tooling life and uniform surface finish also excellent dimensional control. As a direct result, all cost of the component can be significantly decreased, resulting in higher productivity as well as cost savings in the total manufacturing operation are successfully achieved.
Specifications of CBN Cutting Tools
| Parameters Recommended for CBN Cutting Tool | ||||
| Work Piece Material | Hardness | V(m/min) | f (mm/rev) | Ap (mm) |
| Gray Cast Iron | HB170~300 | 500~1500 | 0.1~0.4 | 0.1~1.5 |
| Alloyed Iron | HB240~300 | 150~300 | 0.05~0.4 | 0.1~0.5 |
| Nodular Cast Iron | 100~350 | 200~400 | 0.1~0.4 | 0.1~0.5 |
| P/M Fe-based | HRC55-65 | 50~150 | 0.05~0.4 | 0.05~0.5 |
| Hardened Steel | HRC55~65 | 80~200 | 0.05~0.2 | 0.05~0.2 |
| Heat-resistant Alloys | 110~160 | 50~200 | 0.05~0.2 | 0.05~0.2 |
Our Service
Pre-sale Service:
We have professional sales staff, who can understand the details about your needs and offer feedback.
Sales Service:
After Placing order, our professional sales staff will communicate and work on the production schedules or your change of demand.
After-sale Service:
We will arrange the returning and changing of the products timely if they have quality problems. At the same time, return visits will be made regularly to know service situation of our products.
